Structural Glazing Point Supported Glass Curtain Wall Spider Glass Curtain Wall System

Structural Glazing Point Supported Glass Curtain Wall Spider Glass Curtain Wall System

MOQ: 10Sqm
Price: $100.00 - 200.00/ Square Meter
Standard Packaging: Wooden Cases / Steel Racks
Delivery Period: 30-45Days
Payment Method: T/T 50% as deposit,balance before delivery
Supply Capacity: 20000 Sqm PER 30Workdays
Detail Information
Place of Origin
Shanghai, China
Brand Name
SHANEOK
Certification
ISO9001,ISO14000,ISO4500,CE
Model Number
SNK CW
Standards:
US BS AU EU Standards
Warranty:
5 Years
Surface Treatments:
PVDF/Powder Coated/Anodized/ Electrophoresis/Nooden Grain
After-sale Service:
Free Spare Parts, Return And Replacement, Other
Types:
Hidden Frame,exposed Frame, United Or Point Fitting
Hardware:
Chinese /Germany Brand
Size:
Customized
Minimum Order Quantity:
10Sqm
Price:
$100.00 - 200.00/ Square Meter
Packaging Details:
Wooden Cases / Steel Racks
Delivery Time:
30-45Days
Payment Terms:
T/T 50% as deposit,balance before delivery
Supply Ability:
20000 Sqm PER 30Workdays
High Light:

Glazing Point Supported Glass Curtain Wall

,

Tempered Point Supported Glass Curtain Wall

,

T5 spider glass curtain wall systems

Product Description

Spider Glass Curtain Wall System Structural Glazing Point Supported Fixing Suspension Rope Rib Bolted Facade Glass Wall

Product Description:

Point Supported Glass Curtain Wall is a kind of modern architectural design which is widely used in buildings with a variety of styles. It is made of high quality materials, such as aluminium alloy, aluminum panel, ACP, stone, etc. The surface treatment of the wall can be PVDF, powder coated, anodized, electrophoresis or nooden grain. We choose hardware from both Chinese and Germany brand, and make sure the standards of US BS AU EU are fulfilled. This product is often applied to curtain wall systems, glass curtain wall, glass curtain wall system, glass curtain, glass curtain wall for building, glass curtain wall architectural glass facade, glass curtainwall system, glass curtain wall accessories, glass curtain wall with insulated glass panel, glass curtain rod, glass curtain black out, and curtain walls accessories.



Technical Parameters:

Key attributes

Industry-specific attributes

Warranty
More than 5 years
After-sale Service
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement
Project Solution Capability
graphic design, total solution for projects, Cross Categories Consolidation
Application
Office Building
Design Style
Modern

Other attributes

Place of Origin
Shanghai, China
Type
Curtain Walls
Brand Name
SHANEOK
Types
Unitized/Stick/Spider
Materials
Aluminium alloy and glass/Aluminum panel/ACP/Stone
Hardware
Chinese /Germany brand
Glass Types
Tempered/ Laminated/Double Glazed
Surface Treatments
PVDF/Powder Coated/Anodized/ Electrophoresis/Wooden Grain
Aluminium Alloy
6063-T5/T6, 6061-T5/T6 profile
Standards
US BS AU EU standards
Application
Residential Houses & apartments/Commercial Buildings/Skyscrapers
Supply Ability
20,000 square meters/Month
Packaging
Plastic Film/EPE Cloth/Wood Case/Steel stillage

Types
Unitized curtain wall, Stick curtain wall, Spider curtain wall
Material
Aluminium alloy and glass/Aluminum panel/ACP/Stone
Hardware
Chinese top brand/Germany brand
Glass Types
Tempered, Laminated, Double Glazed, Ceramic Fritted
Surface Treatments
PVDF, Powder Coated, Anodized, Electrophoresis, Wooden Grain etc.
Aluminium Alloy
6063-T5/T6, 6061-T5/T6 profile
Advantages
Professional Design Team / 21,000 square meters large work shop/ International Standards
Standards
In compliance with US BS AU EU standards
Application
Residential Houses & apartments, Commercial Buildings, Skyscrapers etc.
Supply Ability
20,000 square meters per Month
Packaging
Plastic Film, EPE Cloth, Wood Case, Steel stillage

Applications:

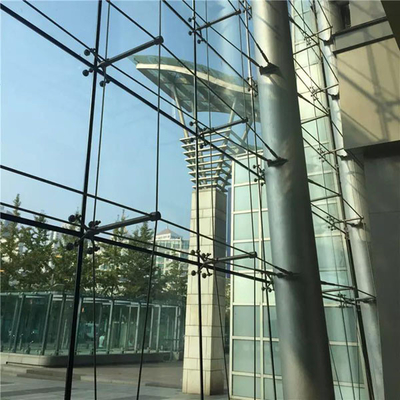

SHANEOK Point Supported Spider Glass Curtain Wall is a system for point-supported vertical glazing in which thermally toughened (tempered) glass sheets are used, in single glazing or in insulated glass. Laminated safety glass (tempered laminated glass) is preferable to be used in single glazing or as the outer sheet of the insulating glass units.
The steel structure can use circular steel tube or bar, or fish belly type steel hinge supporting the structure or other
structural hinge forms. The spider claws are installed between the steel structure and the glass panel with its four corners
fixed. The fasteners of spider claws pass through the glass panel holes and clamping the glass panel after being fastened. This connection structure is flexible in material selection and simple in installation.
SHANEOK comprehensive products and services range include the design, fabrication and installation of Unitized Curtain Wall, Stick Curtain Wall, and Spider Glass Curtain Wall etc.
Structural Glazing Point Supported Glass Curtain Wall Spider Glass Curtain Wall System 0Structural Glazing Point Supported Glass Curtain Wall Spider Glass Curtain Wall System 1
Structural Glazing Point Supported Glass Curtain Wall Spider Glass Curtain Wall System 2
Self-balancing Tension Cable Supported Point-fixing Curtain Wall


It consists of pulling cable or draw rod and steel structure, with the pre-stressed force in pulling cable or draw rod keeping itself balanced and stable. It can take outside load action by decreasing the load transferred to the major structure. When designing, the pre-stressed force of the pulling cable or draw rod must be considered in advance. The pre-stressing of the tension must be pre-specified. The actual installation must be carried out in strict accordance with the prescribed standards.

Single Cable Point-fixing Curtain Wall


It is supported by concave soft cable networks, consists of large scale hanging cable and single layer wire crossing network point system. The large scale hanging cable network system forms different concave fold curtain wall by advanced form finding technology. This system has the super anti earthquake capability between the large scale cable and single layer wire network.
Structural Glazing Point Supported Glass Curtain Wall Spider Glass Curtain Wall System 3
Structural Glazing Point Supported Glass Curtain Wall Spider Glass Curtain Wall System 4
Glass Rib Supported Point-fixing Curtain Wall

There is no steel structure in this system, the glass rib is used for supporting, and the spider claws are connected to the strong thick glass rib, the fasteners of spider claws pass through glass panel holes and clamping the glass panel after being fastened. The top of glass rib is fixed as hanging connection, and the base is as flexible connection.



SHANEOK Spider Curtain Walls provide unobstructed view as a whole, neat, bright and integrated with such advantages as safety,
practicality and artistic taste thus becoming a vogue for modern construction and decorations

Structural Glazing Point Supported Glass Curtain Wall Spider Glass Curtain Wall System 5

Structural Glazing Point Supported Glass Curtain Wall Spider Glass Curtain Wall System 6

Customization:

Customized logo(Min. order 1000 units)
Customized packaging(Min. order 1000 units)
Graphic customization(Min. order 1000 units)
Structural Glazing Point Supported Glass Curtain Wall Spider Glass Curtain Wall System 7
Structural Glazing Point Supported Glass Curtain Wall Spider Glass Curtain Wall System 8

Support and Services:

Point Supported Glass Curtain Wall Technical Support and Service:
  • On-site installation and maintenance services
  • Provide technical support for installation and maintenance issues
  • Provide technical advice and guidance for the selection of glass curtain wall products and components
  • Provide professional design and installation services for complex structure projects
  • Provide training for use of glass curtain wall products and components
  • Provide timely response and resolution to customer inquiries
  • Provide regular maintenance and repair services for glass curtain wall products
 Structural Glazing Point Supported Glass Curtain Wall Spider Glass Curtain Wall System 9

Packing and Shipping:

Point supported glass curtain wall is an important structural element in modern building construction. It requires careful packaging and shipping to ensure its safe arrival at the construction site.

The packaging for point supported glass curtain wall is designed to protect the glass panel and the supporting structure from damage during shipping. The glass panel is wrapped in layers of bubble wrap to provide cushioning and prevent scratches. The supporting structure is secured in a wooden or metal crate, with foam padding to protect it from any shocks or bumps. The entire package is then sealed in a waterproof material to protect against moisture.

Shipping is done by a reputable freight forwarder. The package is loaded onto a truck or container for transport. The freight forwarder will track the shipment to ensure timely delivery. Upon arrival at the construction site, the package is inspected for any damage and the contents are verified.

 Structural Glazing Point Supported Glass Curtain Wall Spider Glass Curtain Wall System 10

FAQ:

1. who are we?
We are based in Shanghai, China,sell to Mid East(50.00%),Central America(20.00%),North America(20.00%),Africa(10.00%).

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Curtain wall,Aluminum magnesium manganese roof,aluminum window,UPVC window,fire rated door

4. why should you buy from us not from other suppliers?
We specialize in the design and production of different types of Curtain Wall Systems. We have our own process plant and could make one-stop solution for building facade projects.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
